Compact Combicore heat exchanger
Combicore heat exchangers are used flexibly in various high-performance electronics applications, such as electric vehicles, renewable energies or medical technology. Cast-in thin-walled tubes ensure excellent temperature control of different components even in the tightest of spaces with optimal flow. Thanks to the very good cooling effect, you avoid critical hotspots, ensure optimal operation and a long component service life. At the same time, the pressure loss is very low, so that only a low pump output is required and the component can be operated energy-efficiently with low energy consumption. Thanks to the efficient use of materials, the sustainable Combicore heat exchangers support consistent lightweight construction and can also be used for various tasks in the automotive sector.
Together with customers and suppliers, we have developed a liquid heat sink manufactured using die casting. This is extremely effective and, thanks to its small size, can be used universally in various systems.

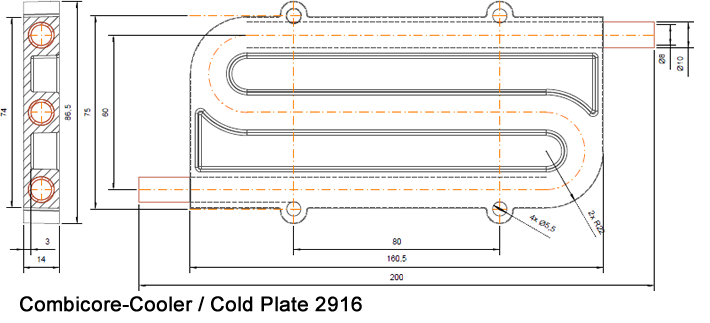

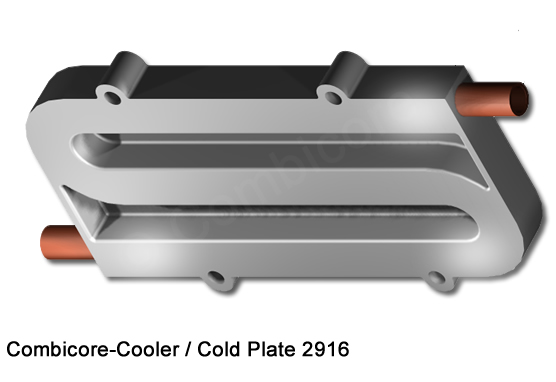

Characteristics of the standard variant cold plate 2916:
| CHANNEL | |
| Inner diameter: | 8 mm |
| Wall thickness tube: | 1 mm |
| Length: | 542 mm |
| Alloy: | Aluminium (AlMn1 / ENAW3103) or copper (CU-HCP) |
| CASTING | |
| Alloy: | ENAC-AlSi9Cu3(Fe) |
| Dimensions: | 160 x 86,5 x 14 mm (L x W x H) |
| Pulge pipe end: | each 20 mm |
| 4 screw points | Ø 5,5 mm |
| Weight: | 236 g (Aluminium), 315 g (Copper) |
Of course, we will continue to implement individual system solutions according to customer requirements.
Your benefits
- Excellent cooling effect in the smallest space
- Optimal flow rate with low pressure loss
- Low pump power required
- Low energy consumption
- Economically optimal production in die casting with high quantities
- All other known properties of Combicore casting cores
